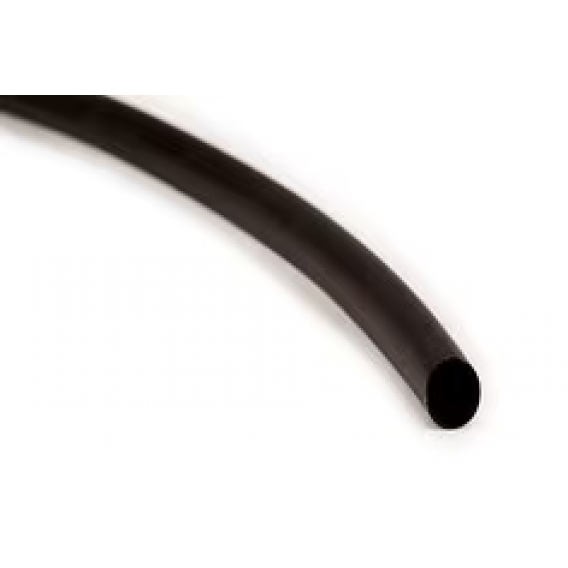

3M™ Heat Shrink Tubing NST
- Product Code: 3M™ Heat Shrink Tubing NST
-
₹0.00
- Ex Tax: ₹0.00
Applicable SAE-AMS-DTL-23053 Specifications | 23053/1 class 1,2 |
Elongation | 500 %, 500 Decibel |
Flammability Rating | Self-Extinguishing |
Heat Shrink Type | Specialty Polymer Tubing |
Inner Diameter After Shrink (Metric) | 0.093 mm, 0.25 mm, 1.57 mm, 2.12 mm, 4.75 mm, 7.92 mm, 9.53 mm, 11.11 mm, 12.7 mm, 15.54 mm, 25.4 mm, 38.1 mm |
Inner Diameter Before Shrink (Metric) | 3.18 mm, 4.75 mm, 6.35 mm, 9.53 mm, 12.7 mm, 15.87 mm, 19.05 mm, 22.23 mm, 25.4 mm, 31.75 mm, 50.8 mm, 76.2 mm |
Material | Modified Neoprene |
Maximum Operating Temperature (Celsius) | 121 ℃ |
Mil Spec | AMS-DTL-23053/1, Class 1 and 2 |
Minimum Expanded Tubing I. D. | 1 in, 1.25 in, 1.5 in, 1.75 in, 2 in, 3 in, 5 in, 7 in |
Non-Corrosive | Yes |
Operating Temperature Range (Celsius) | -70 °C to +121 °C |
Product Colour | Black |
Recovered Inner Diameter (metric) | 15.54 mm |
Recovered Wall Thickness | 0.087 in |
Shrink Ratio | 2:1 |
Tubing Type | Special Purpose, Modified Neoprene |
UL File Number | E-39100 |
