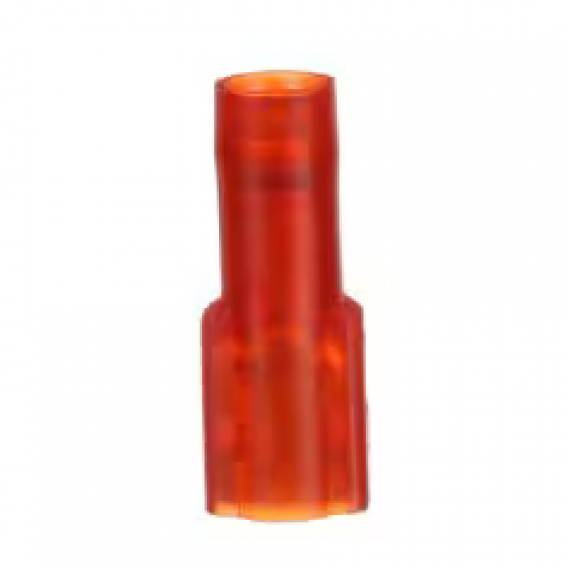

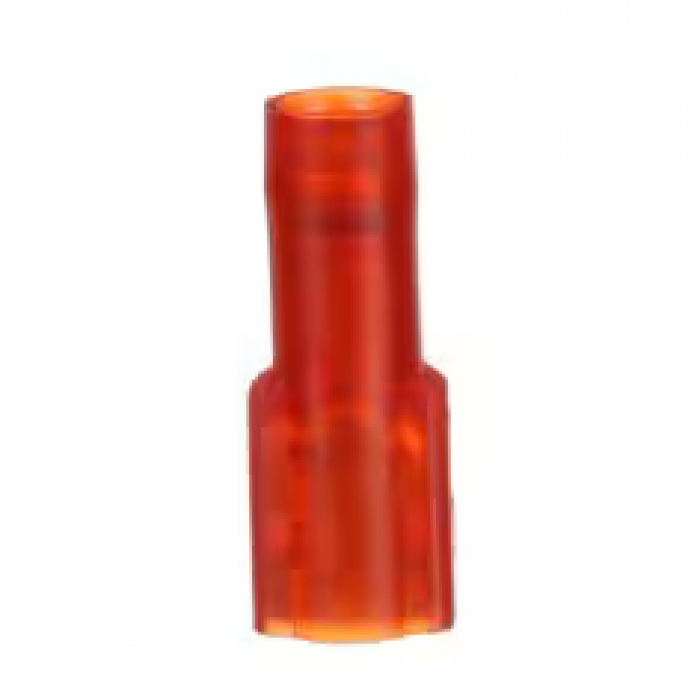

3M™ Scotchlok™ Nylon Fully Insulated with Insulation Grip Female Disconnects

Check delivery location

Qty

Availability: In Stock

Barrel Inside Diameter	0.080 Inch,0.085 Inch,0.08 Inch
Barrel Style	Butted
CSA File Number	LR22190
Connection Type	Wire
Connection Width (Metric)	4.75 mm, 6.35 mm
Connector / Connector Tool	Connector
Connector Style	Insulation Displacement
Diameter (D)	0.23 Inch
Fastener Orientation	Female
Flame Retardant	No
Grease Filling Against Corrosion	No
Insulation Colour	Blue, Red
Insulation Material	Nylon with Insulation Grip
Interrupt Free Shifting	No
Male Tab Width (W')	0.187 Inch
Material	ETP Copper, Plastic
Mates with Female Width	0.187 Inch, 0.25 Inch, 0.250 Inch
Mates with Male Tab Width (W')	0.187 Inch, 0.25 Inch
Maximum Insulation Outside Diameter	0.145 in
Maximum Insulation Outside Diameter (metric)	3.7 mm
Maximum Operating Temperature (Celsius)	105 ℃
Maximum Recommended Voltage Rating	600 V
Product Colour	Blue, Red
Terminal Style	Fully Insulated
Terminal Type	Disconnect
UL File Number	E70512
Units per Case	500.0,1000.0
